MM 850nm 14Gbps PD (Top-illumination)

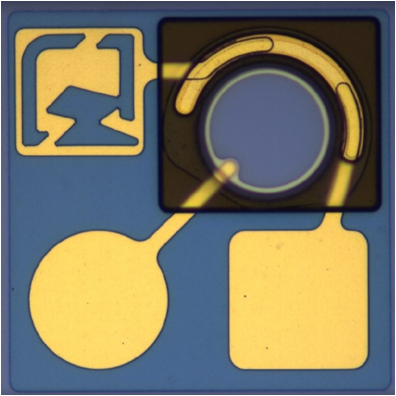

The QuantumZ – QZP14MM0850Tx0x is top illuminated GaAs PIN photodiode chip has a 64um detection window and excellent performances, like low capacitance, high responsivity, low dark current, and reliability in field.
The device is available in singlet (1×1) or array configurations (1×4) and are compatible with wire-bonding and flip-chip bonding.
Features
- High responsivity & data rates from DC to 14Gbps
- Low dark current, operating voltage & capacitance
- Topside anode & cathode configuration
- Available as single chip & 4 channel array
- Available application for COB & flip chip processes
- High humidity robustness compliant with GR-468
- Halogen & RoHS compliant
Applications
Datasheet and Documents
